Rail Mount Vertical Grip

Description

RAIL MOUNT VERTICAL GRIP

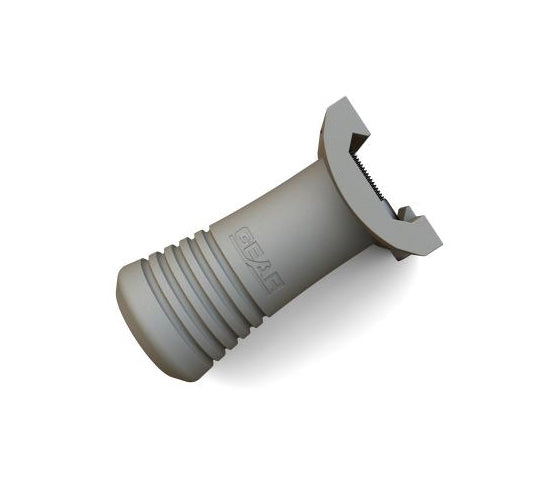

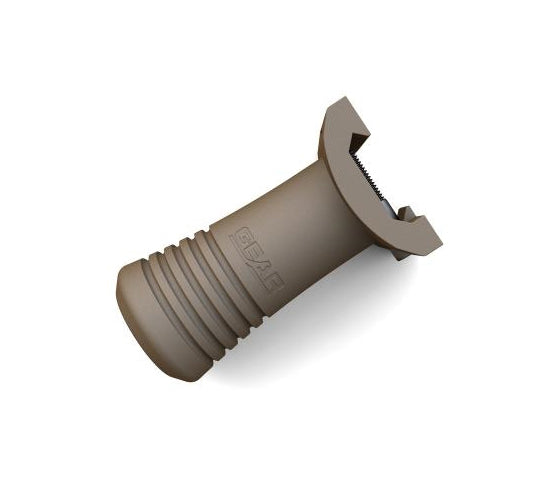

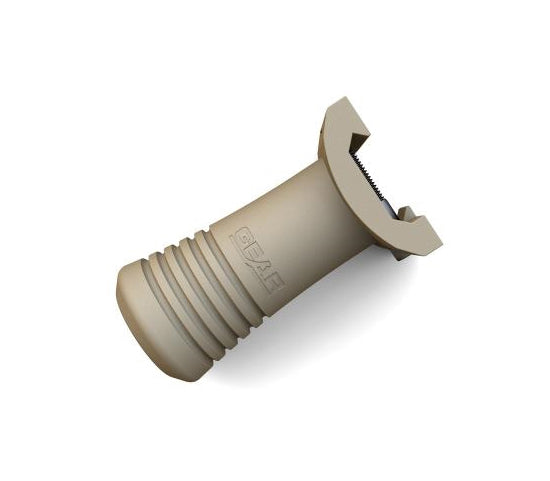

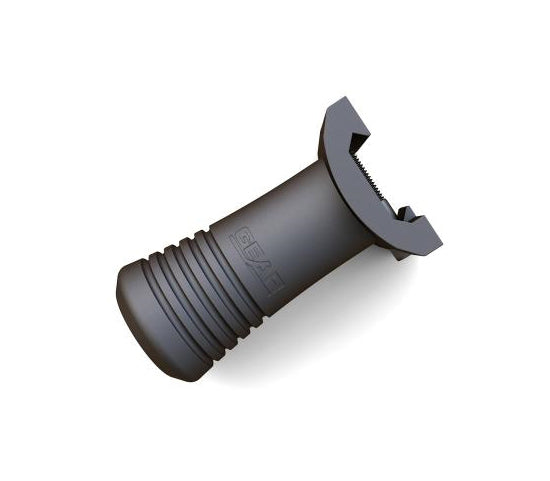

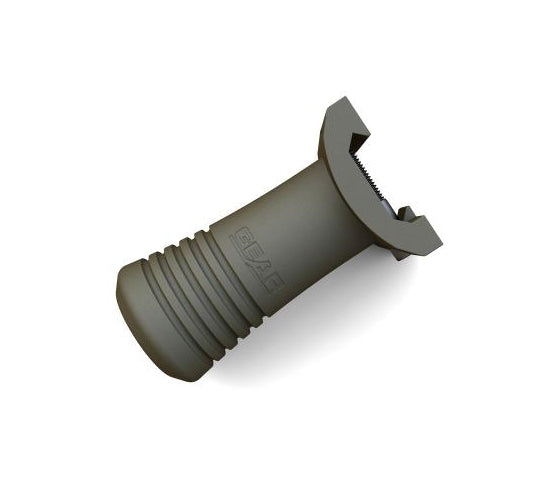

The [ Patent Pending ] Gear Sector™ Rail Mount Vertical Grip was designed to provide a low profile, ergonomic solution for increased weapon control. It was designed to bridge the gap between a handstop and a full blown vertical grip. As such it is the shortest of its kind currently on the market at only 2.00" over the rail surface. We designed them to fit perfectly flush with the Tango Down rail panels for an uninterrupted rail space. They can be mounted anywhere on a picatinny rail but work best when run in tandem with a side mounted hand stop. They provide an excellent reference point when mounted on the lower rail space.

Materials

The Gear Sector™ Rail Mount Vertical Grip is precision CNC machined from billet 6061-T6 aluminum and finished per Military Specification ( MIL-A-8625F ) Type III, Class II Hard Coat.

• Material: 6061-T6 Aluminum
• Finish: Military Specification ( MIL-A-8625F ) Type III, Class II Hard Coat
• Weight: 2.5 ozs.
• Compliance: 100% Berry Amendment Compliant
• Origin: Proudly Made in the USA

Installation

Installation is straight forward. Simply loosen the socket head cap screw. Remove the screw / clamp assembly. Apply a drop of Vibra-Tite® VC3™ ( included ) to the last few threads and allow to dry. Rock the grip onto your rail system, insert screw / clamp assembly and tighten it down with the included allen wrench.
