Pistol Caliber Carbines - TriggerTech

Lever Type: Straight or Curved
Zero Creep™: Yes

TKR™: Yes - Min Overtravel
CLKR™: Yes - Inc. Adjustable
Flat Wire™: Yes - Hard Primer Compatible
Take Up Distance: 0.035"
Overtravel: Sub 0.015"
Reset: Sub 0.030"
Pin Size: Mil Spec 0.154" (trigger pins not included)
Material: 7075 Aluminum & Stainless Internals

Weapon Platform: SIG MPX, AR-9, FX-9
Warranty: Product Lifetime

Key Components: 440C Stainless Steel

PVD Black – PVD stands for Physical Vapour Deposition. It is a hard and durable coating that is applied to external stainless components to give them a clean black color.

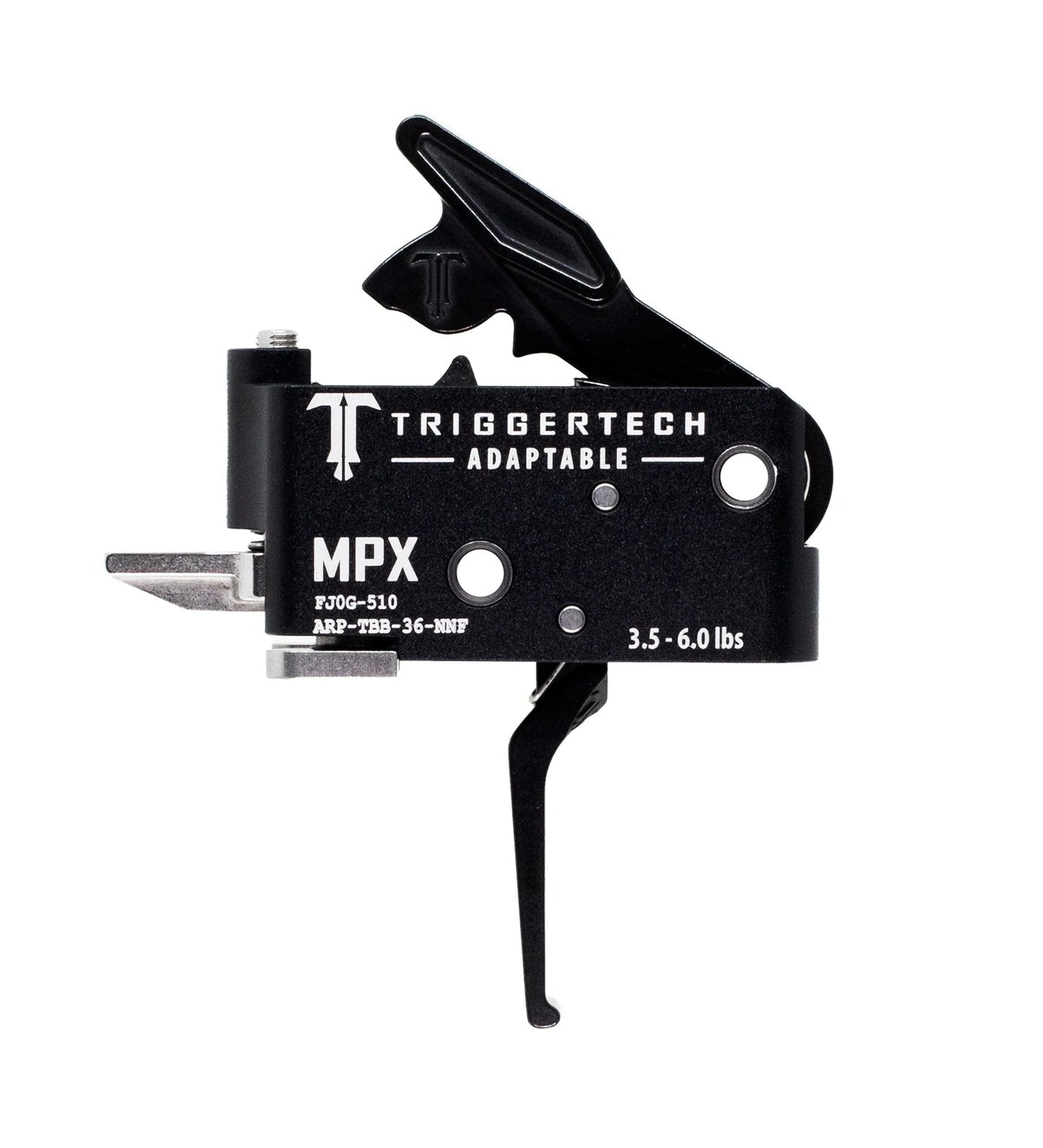

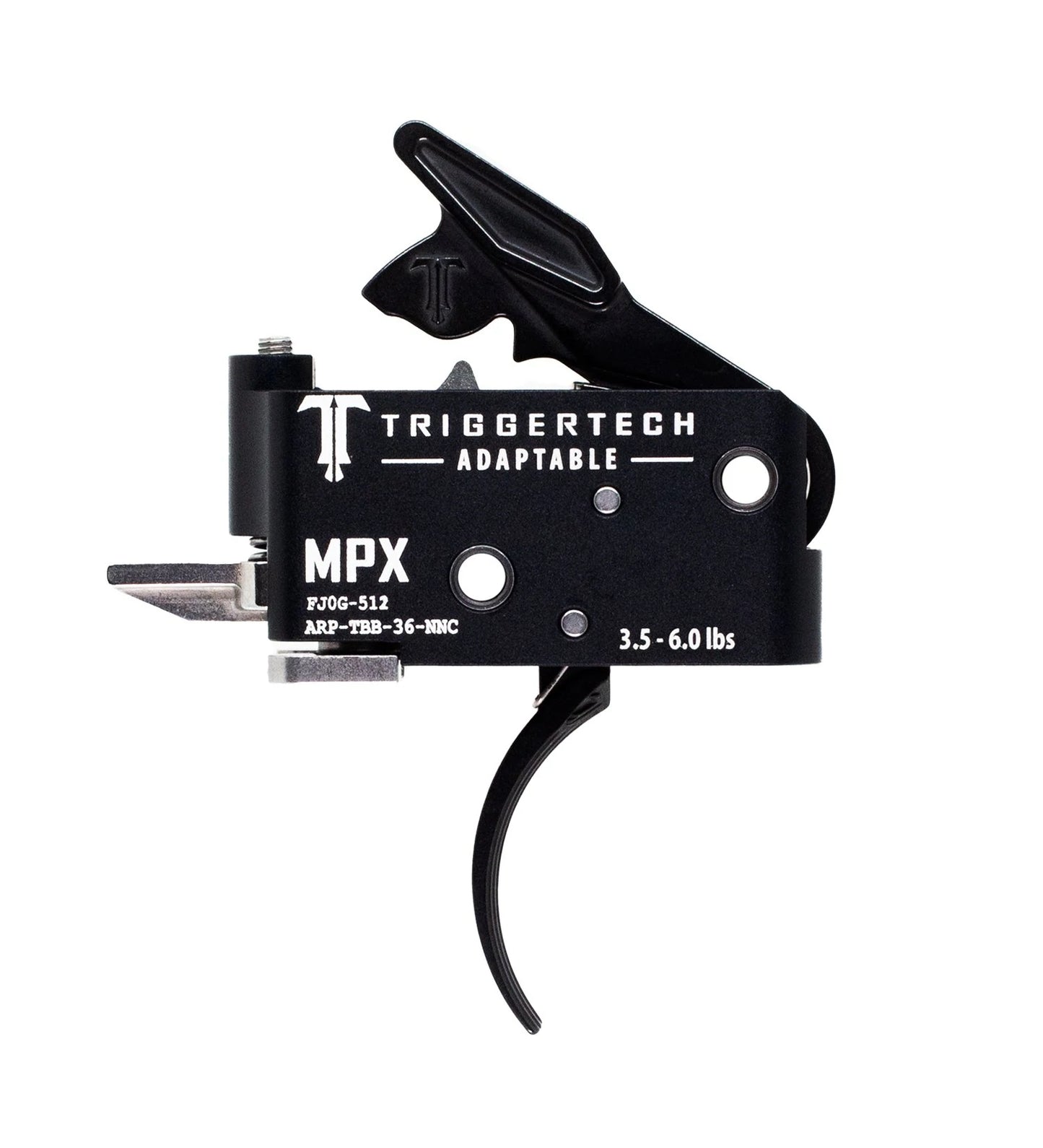

SIG MPX

The SIG MPX trigger features a bumper in the housing that transfers the majority of the blow back energy to the lower receiver. This was designed with safety in mind and helps to protect the trigger.

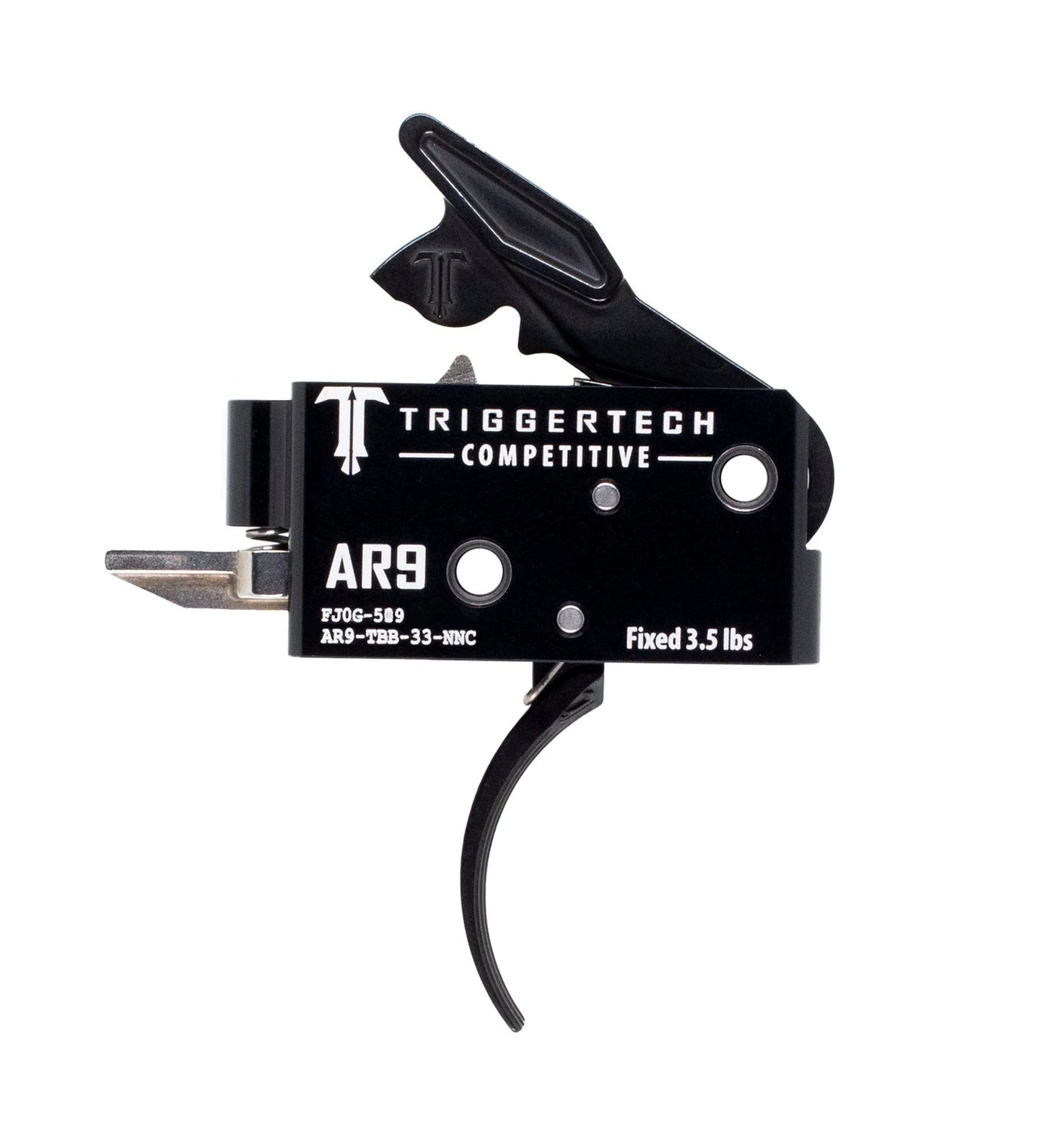

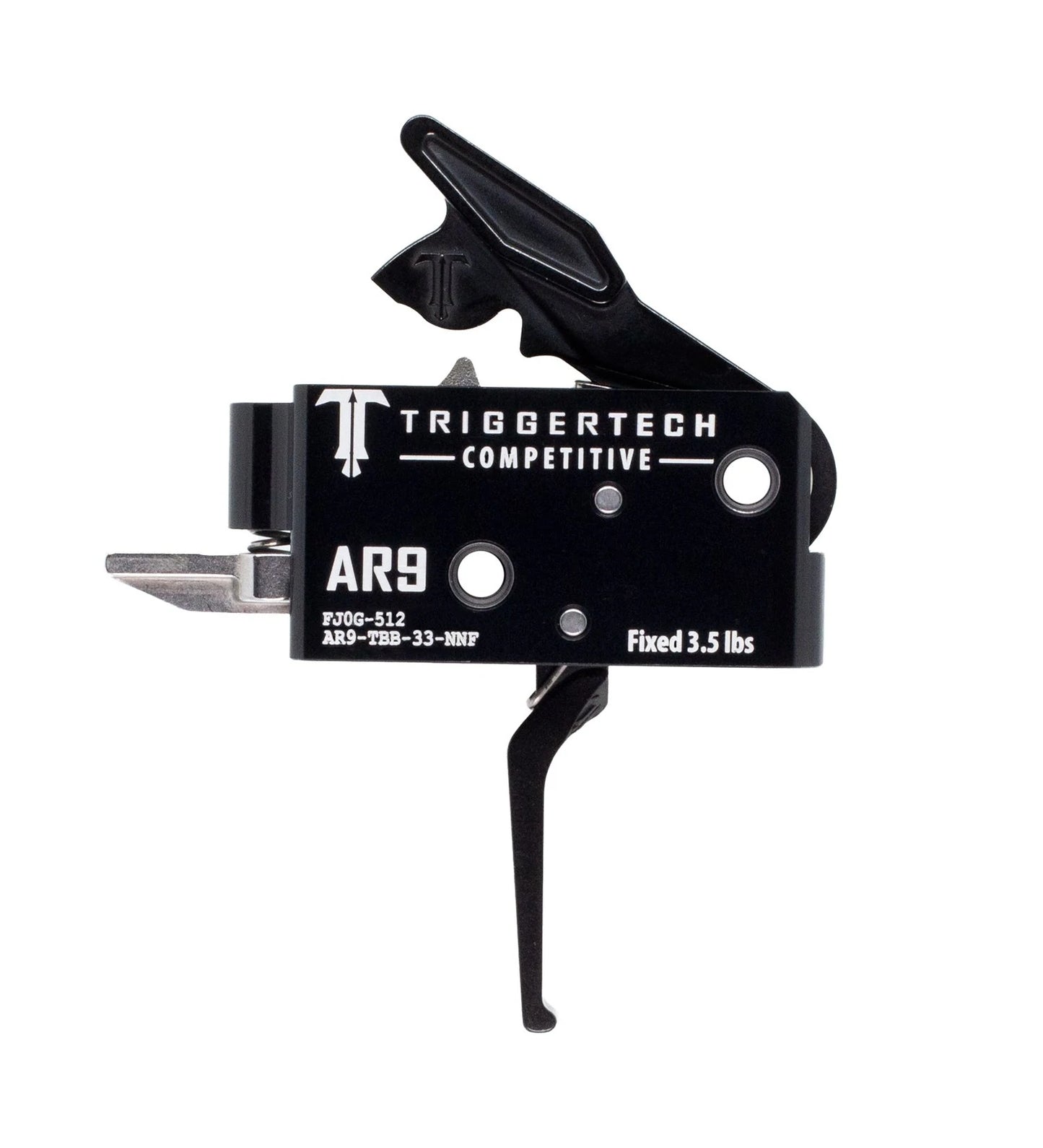

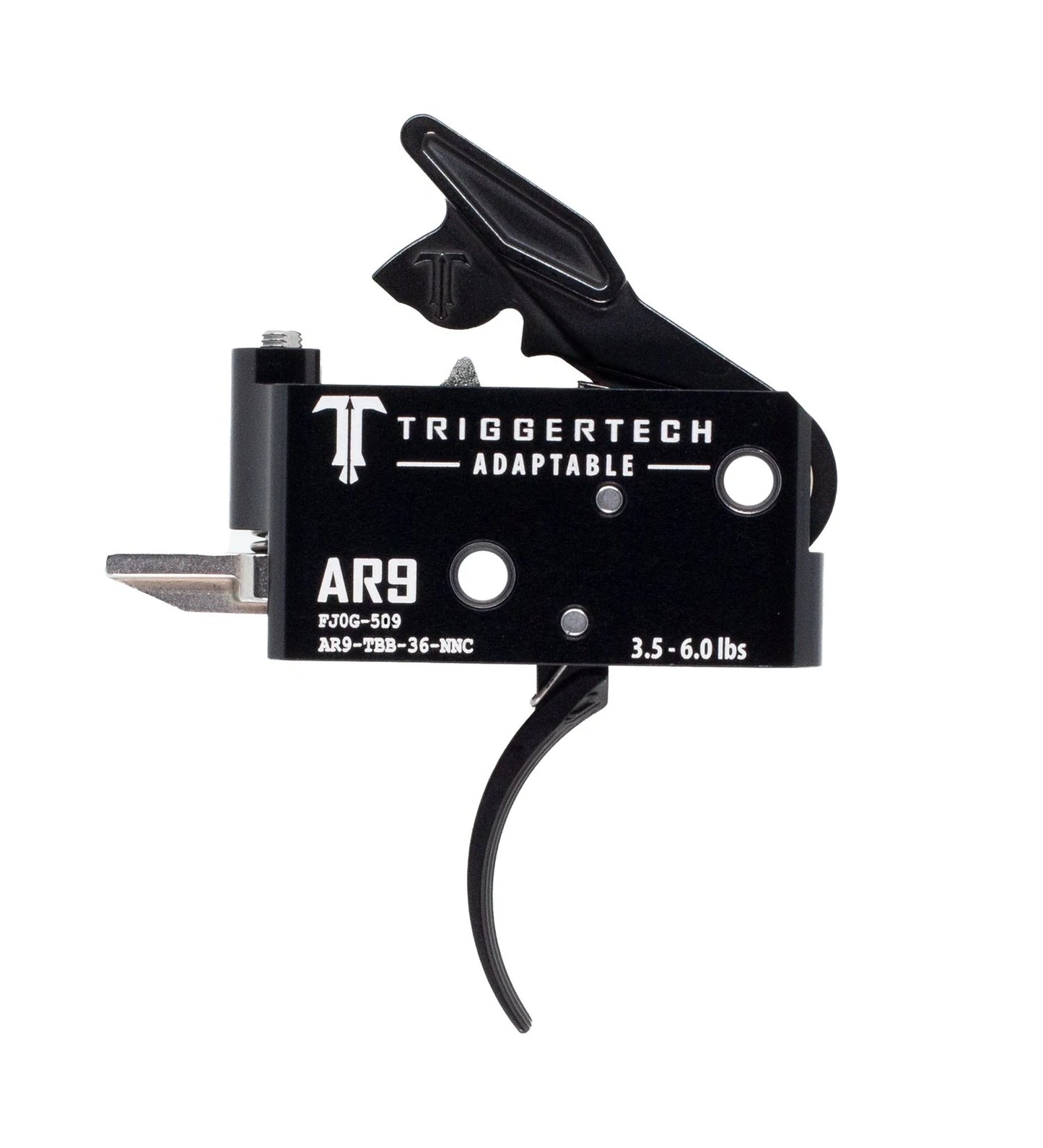

AR-9

The AR-9 trigger’s hammer design has more mass compared to our AR15 model, which increases inertia. The Center of Percussion is also lower in comparison to AR15, which is specific to the AR-9 platform. This allows maximum energy delivery upon impact with the firing pin, while reducing vibration and wear.

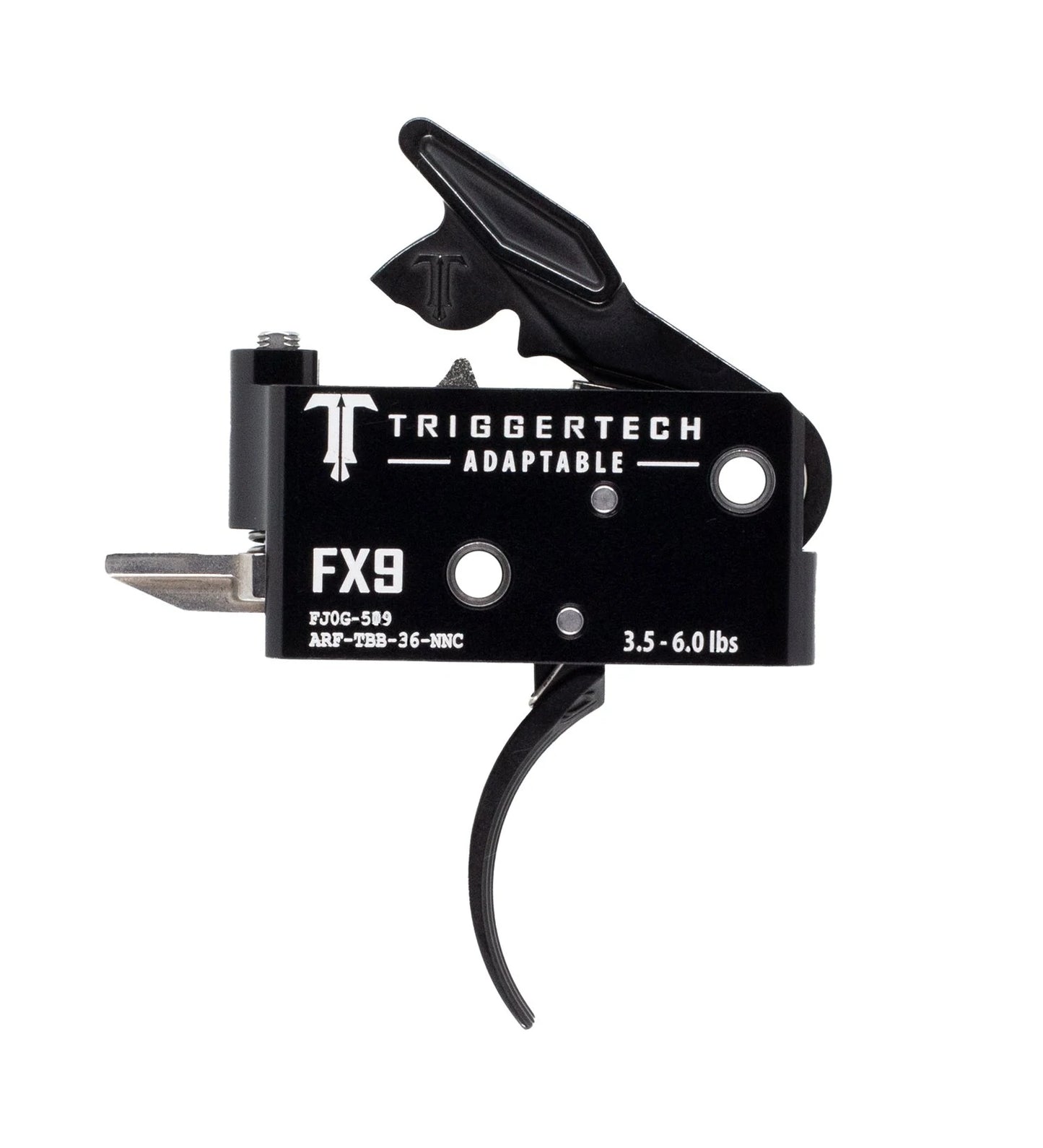

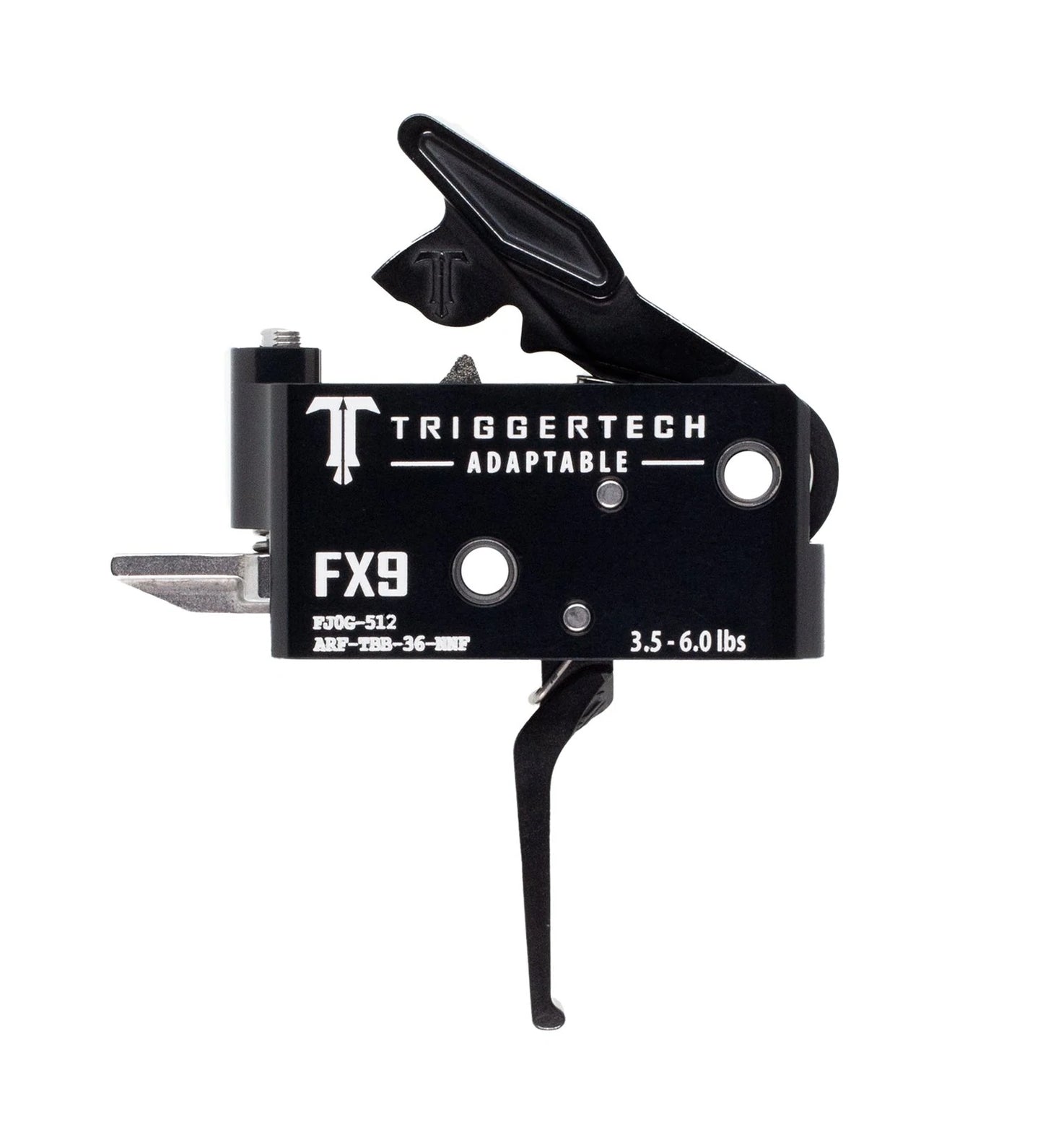

Freedom Ordinance FX-9

The FX-9 trigger is nearly identical to the AR-9 trigger design, except it has lower disconnect engagement to provide the extra clearance required by the FX-9 platform bolt carrier group. This trigger is ideal for PCC’s that have a lower bolt carrier group.

All pull weights and measurements are approximate.
